E-flite 10 – 15 Size Main Electric Retract Set

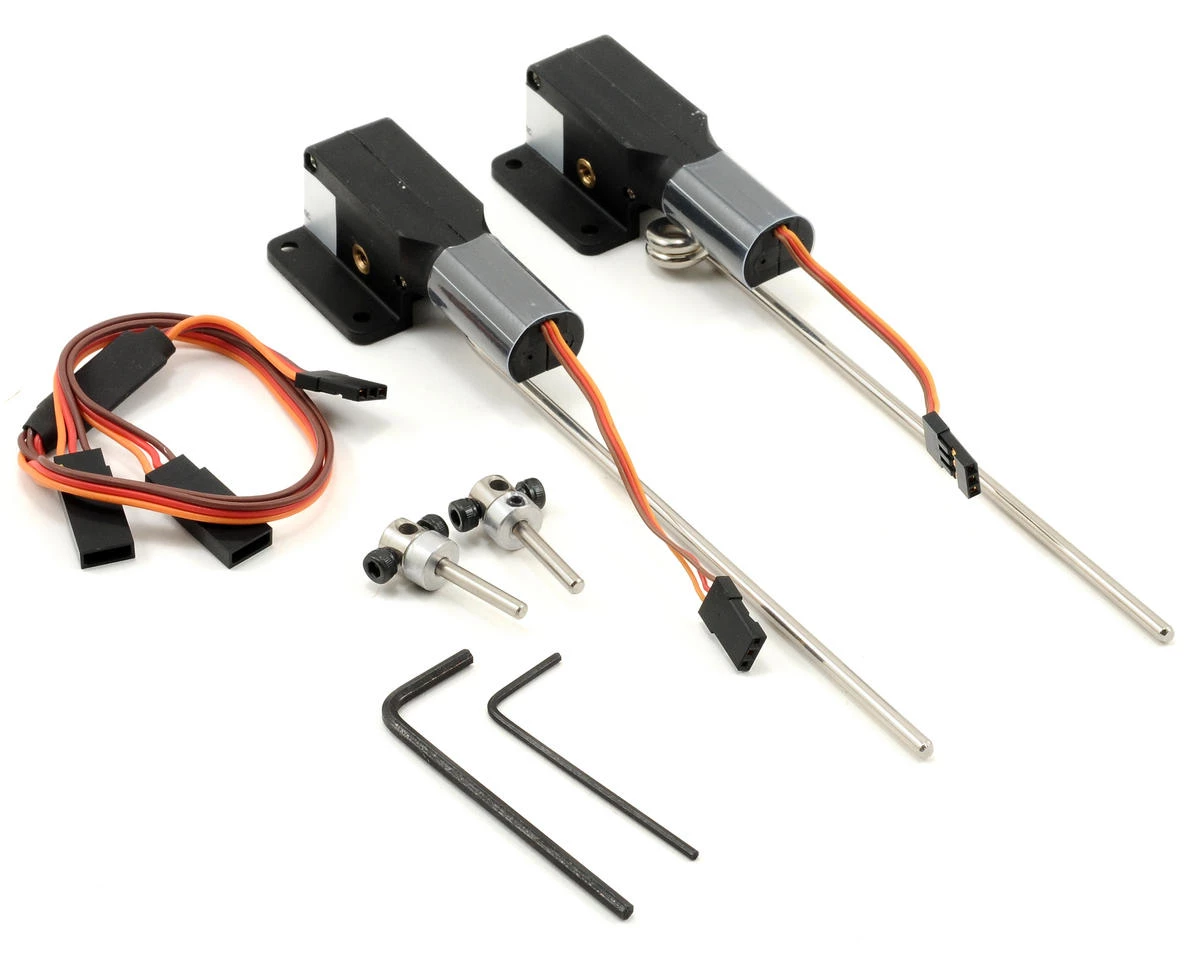

This is the E-flite Main Electric Retract Set, and is intended for use with 10 – 15 Size aircraft that will accept functioning retracts. You don’t have to be a master modeler to add the realism of functioning retracts to your airplane. E-flite’s completely self-contained retract system requires no air tank, complex linkages or extra servo. It can simply be bolted into place and plugged into the receiver. A specially designed Y-harness is included that allows for the use of a single receiver channel to control all retract units.

Features:

• Robust landing gear strut and mounting bracket
• Integrated electric motor with a micro PCB
• Built-in over current protection

Specifications:
Application: Aircraft 10–15 size
Aircraft Weight: 2.00 – 4.50 lb (0.90 – 2.00kg)
Strut Diameter: .118 inch (3mm)
Speed: 4.8V (1.25 seconds), 6.0V (1.0 seconds), 7.4V (.80 seconds)
Weight: 3.1 oz (complete set)
Motor Type: Electric brushed can
Connector Type: JR, universal
Gear Type: Metal
Current Draw Idle: 5mA
Current Draw Stall: 200mA
Voltage: 4.8–7.4

This product was added to our catalog on February 18, 2011
