E-flite 15 – 25 Tricycle Electric Retract Set

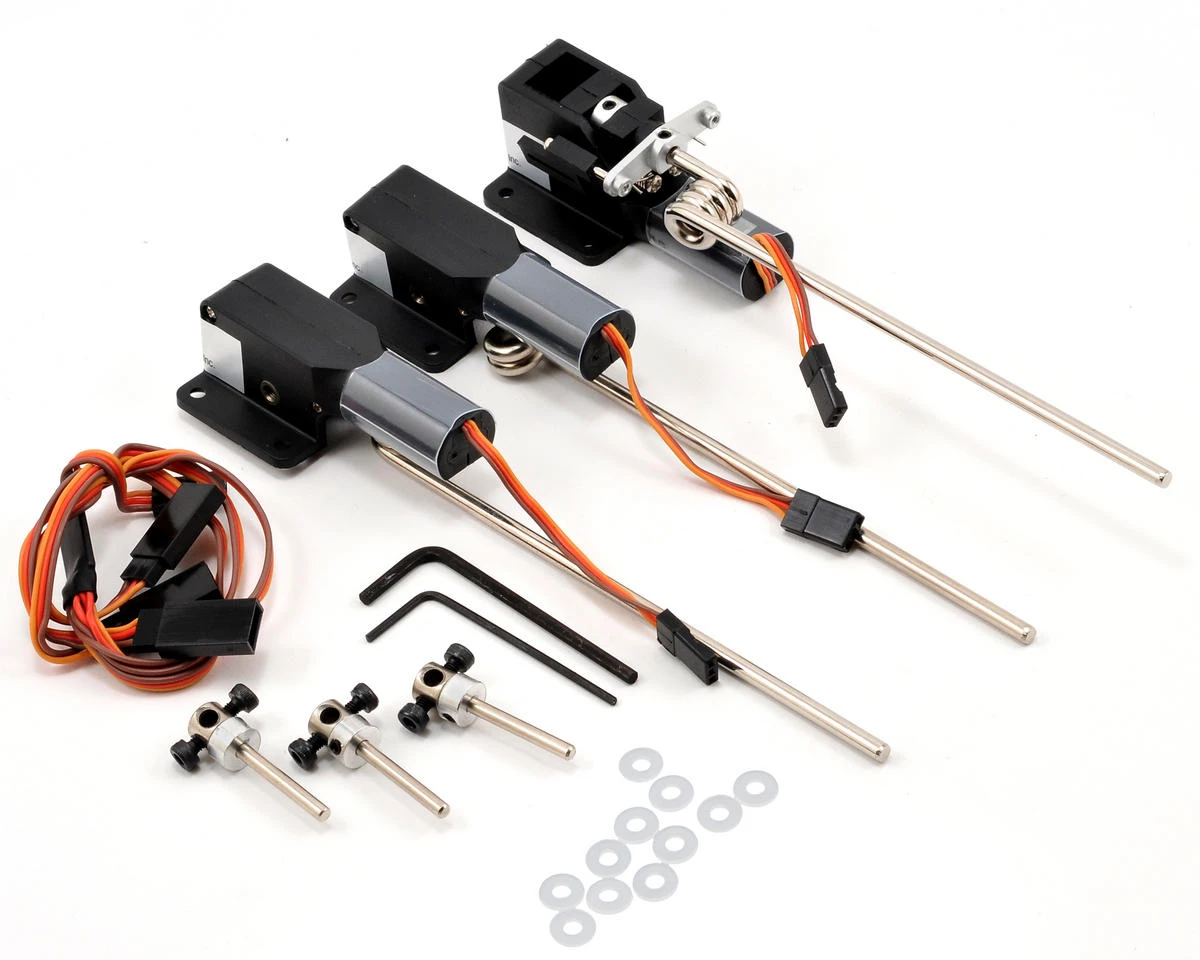

This is the E-flite 15 – 25 Tricycle Electric Retract Set. Add scale realism to your 15- to 25-sized airplanes using these functioning retracts! E-flite’s completely self-contained retract systems require no air tanks, complex linkages, or even extra servos. They simply need to be bolted into place and plugged into the receiver. A specially designed Y-harness is also included, allowing pilots to use a single receiver channel to control all retract units.

Features:

• Robust landing gear strut and mounting bracket
• Integrated electric motor with a micro PCB
• Built-in over current protection
• Strut Diameter: 0.137 in (3.5mm)
• Aircraft Weight: 4.00 – 7.00 lb (1.80 – 3.10kg)

Specifications:
Application: Aircraft 15-25 size
Speed: 1.25 sec @4.8V; 1.00 sec @ 6.0V; 0.75 sec @ 7.4V
Weight: Main gear: 1.4 oz (39.5g) each; Nose gear: 1.7 oz (48.0g)
Motor Type: Electric brushed can
Connector Type: JR, universal
Gear Type: Metal
Current Draw Idle: 5mA
Current Draw Stall: 200mA
Voltage: 4.8V-7.4V

This product was added to our catalog on November 23, 2011
