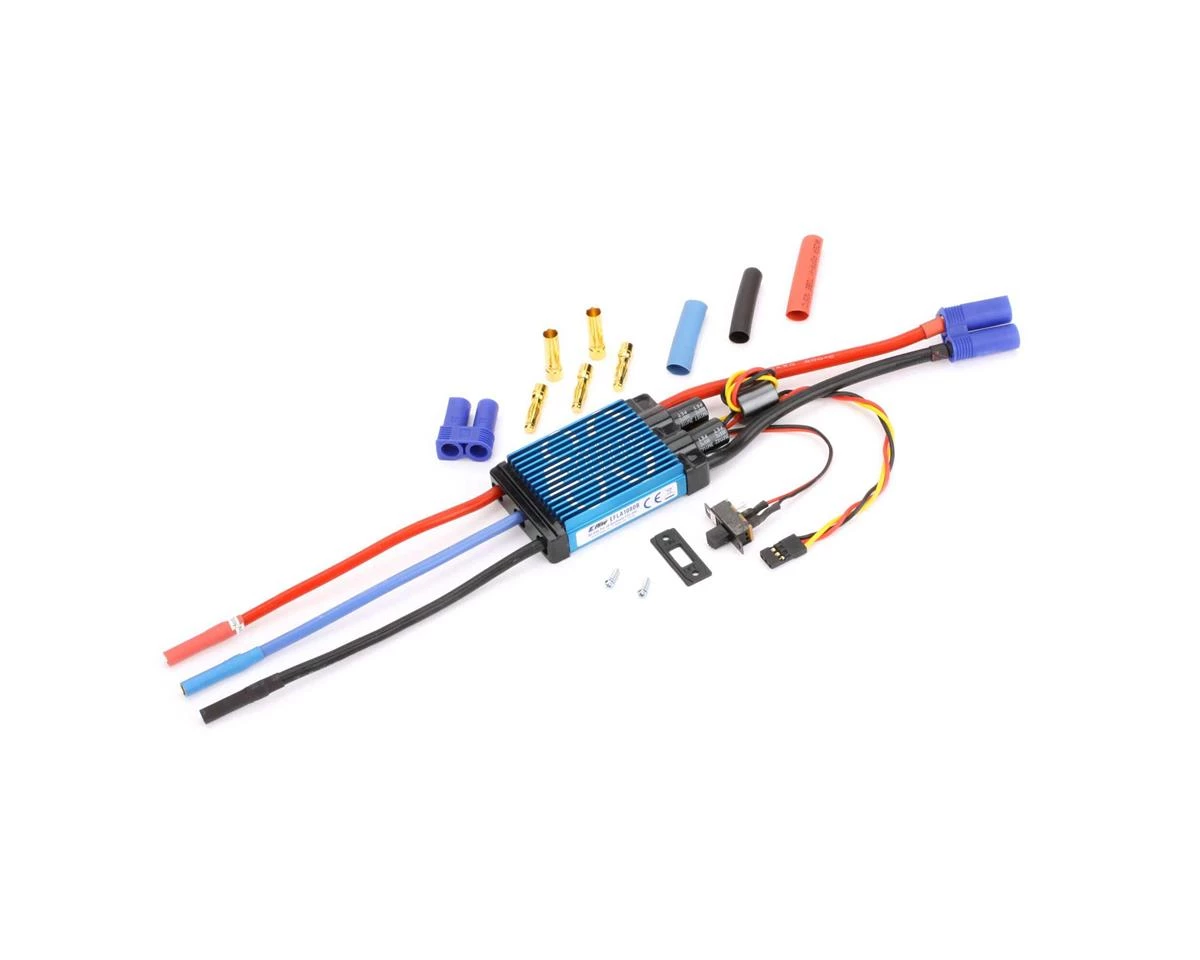

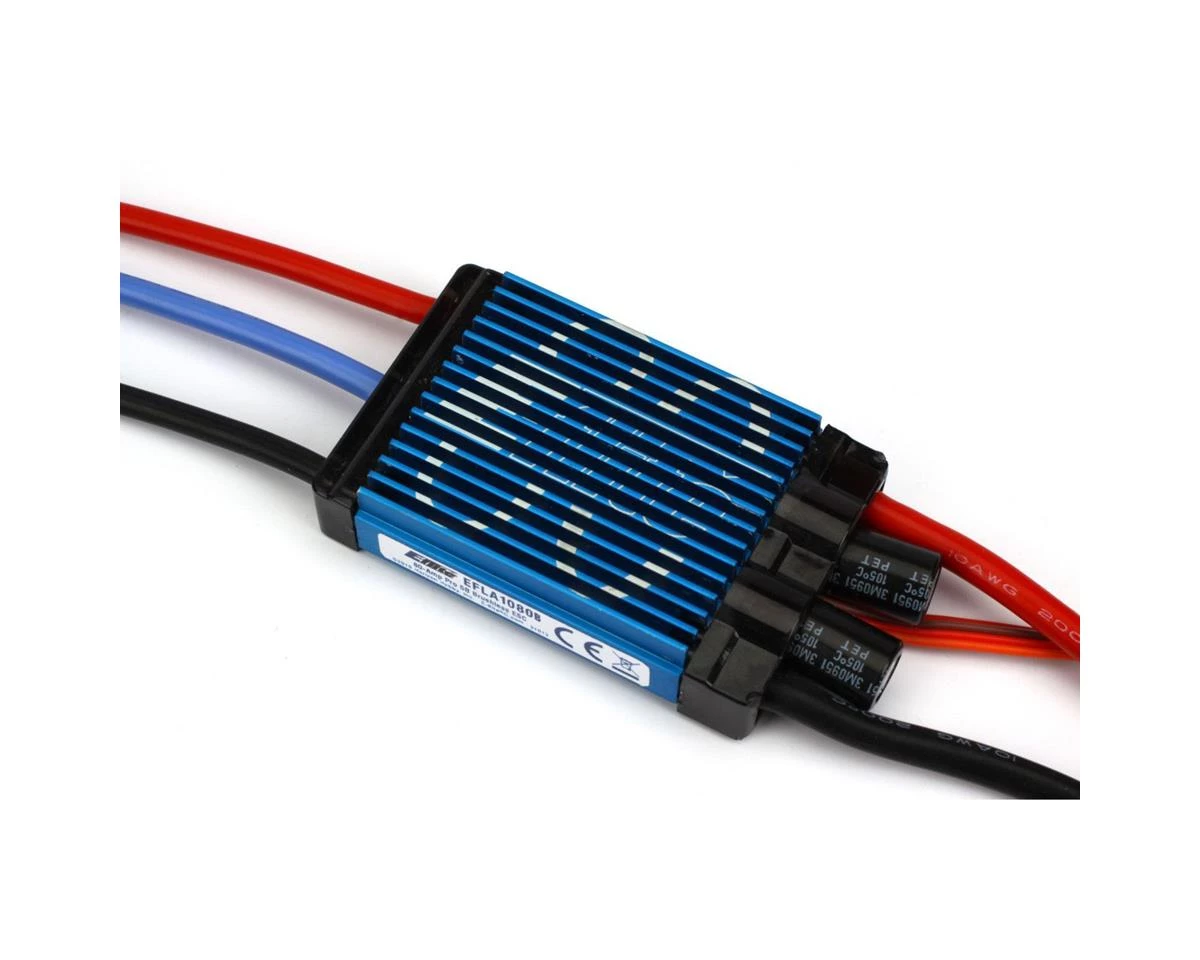

E-flite 80-Amp Pro Switch-Mode BEC Brushless ESC (V2)

This is the E-flite 80-Amp Pro Switch-Mode BEC Brushless ESC, Version 2. When performance matters in your high-current applications look no further than the E-flite 80-Amp Pro Switch Mode ESC. This is a high-quality, efficient sensorless brushless electronic speed control with an integrated Switch-Mode BEC. It can operate without the need for a separate receiver battery to power your servos and receivers, saving you weight and complication. It is capable of up to 80 amps continuous current when using 3- to 6-series Li-Po battery packs. You can drive up to 7 analog or 6 digital standard-sized servos with the BEC on any recommended input voltage. Featuring an exposed, finned heat sink aluminum case with lightweight plastic endcaps, safe power-arming along with advanced programmable features such as low voltage cutoff, braking, timing, throttle input range, and more, the E-flite 80-Amp Pro Switch Mode ESC is truly a ‘pro series’ electronic speed control.

Features:

• 3–6S Li-Po, 9- to 18-cell Ni-Cd/Ni-MH input voltage
• 5-volt Switch-Mode BEC circuit capable of 2.5-amp continuous current on any recommended input voltage
• Drives up to 7 analog or 6 digital standard-sized servos, with the BEC on any recommended input voltage
• Up to 80-amp continuous current with proper air flow, 100-amp peak

Tech Note: This ESC is NOT COMPATIBLE with the E-Flite Power 60 470kV Brushless Motor

Specifications:
Forward: Yes
Brake: Yes
Time Delay Brake: Yes
Continuous Maximum Current: 80A
Input Connector Types: EC5, 10AWG
Output Connector Types: 4mm Gold Bullet, 12AWG
Momentary Peak Current: 100A
Length: 3.0 in (77mm)
Width: 1.6 in (41mm)
Height: 0.62 in (15.5mm)
Weight: 3.75 oz (106g)
BEC Voltage: 5.5V Switch-mode
Overload Protection: Yes
Cells w/BEC: 9-18 cells NiMH, 3-6S LiPo
Auto Cutoff: Yes

This product was added to our catalog on June 27, 2013
