E-flite Delta-V (R) 32 80mm EDF Unit

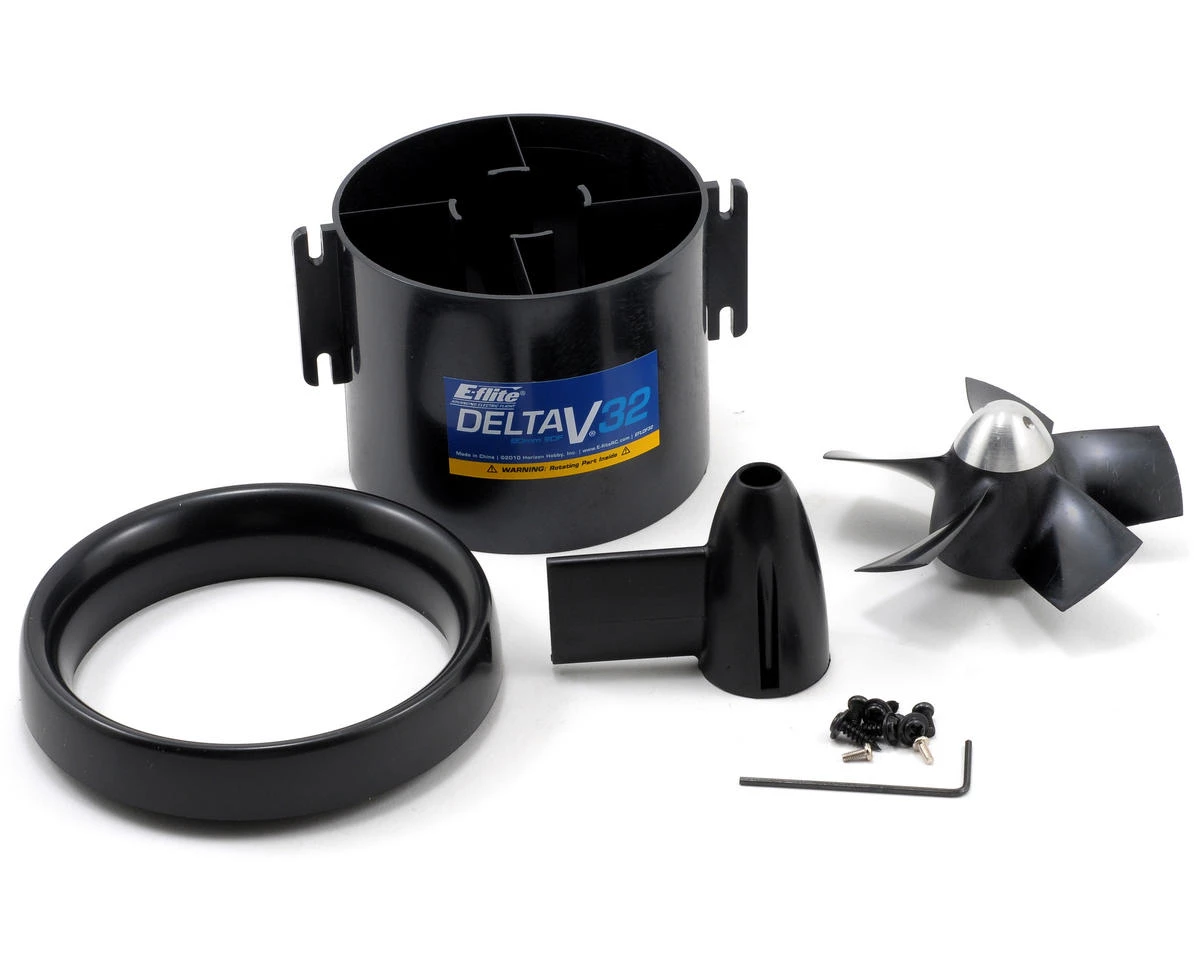

This is the E-flite Delta-V (R) 32 80mm EDF Unit. E-flite’s Delta-V 32 80mm EDF electric ducted fan unit is an ideal choice for products such as E-flite’s Habu 32 DF and other similar sized ducted fan airplanes that require 80mm diameter fan units. The BL32 Ducted Fan Brushless Motor, 2150Kv (EFLM3032DFA) is purpose-built for this Delta-V 32 80mm EDF and both products will provide great performance.

Features:

• High-performance, efficient design with quick assembly time
• Injection-molded, high-strength fiberglass-filled Polyphenylene Sulfide [PPS] plastic
• Factory-balanced 80mm 5-blade rotor design and aluminum spinner
• Includes center body fairing to reduce drag

Delta-V 32 80mm EDF Specifications:
Rotor Diameter: 80.0mm (3.15 in)
Shroud Outside Diameter: 83.0mm (3.25 in)
Shroud Length: 66.0mm (2.60 in)
Shroud Length (Including Intake Ring): 82.0mm (3.20 in)
Motor Casing Diameter: 28.3mm (1.10 in)
Overall Weight: 116 g (4.10 oz)

Delta-V 32 80mm EDF Performance Data w/EFLM3032DFA*:
Installed Static Thrust: 4.50 lbs
RPM: 38,500
Watts: 1,400
Current: 62A
* Data measured installed in Habu 32 DF using BL32 DF Brushless Motor, 2150Kv & 6S 5000mAh 30C Battery

Static Data w/EFLM3032DFA*:
Static Thrust: 5.40 lb on 6S (21.9V)
RPM: 39,640 on 6S (21.9V)
Watts: 1,160 on 6S (21.9V)
Current: 53A on 6S (21.9V)
*Data measured in lab conditions using bell mouth intake and tail pipe measuring 159mm in length with 72.0mm exit diameter

This product was added to our catalog on March 23, 2011
